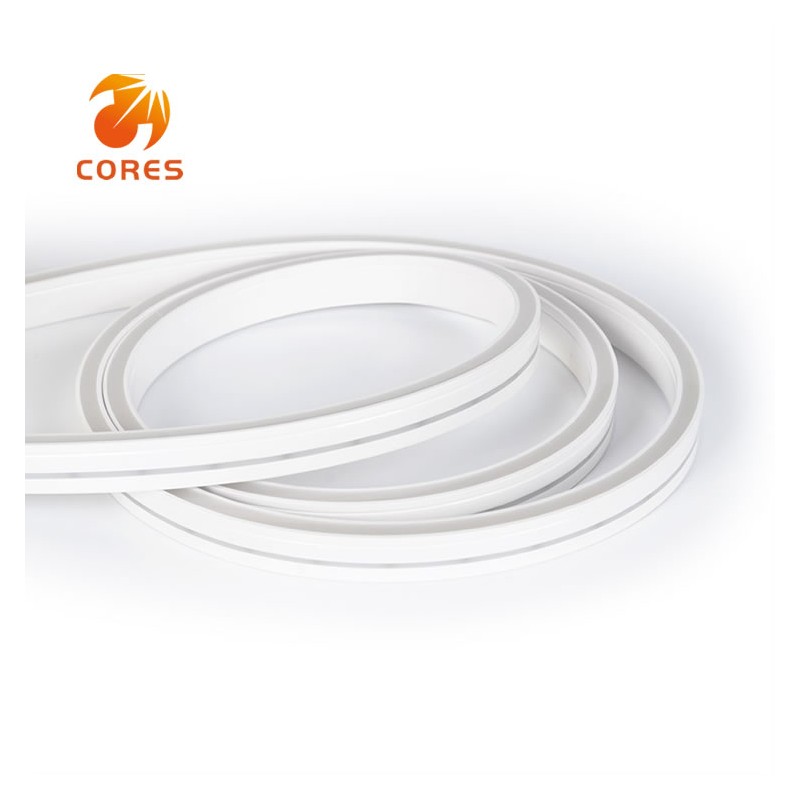

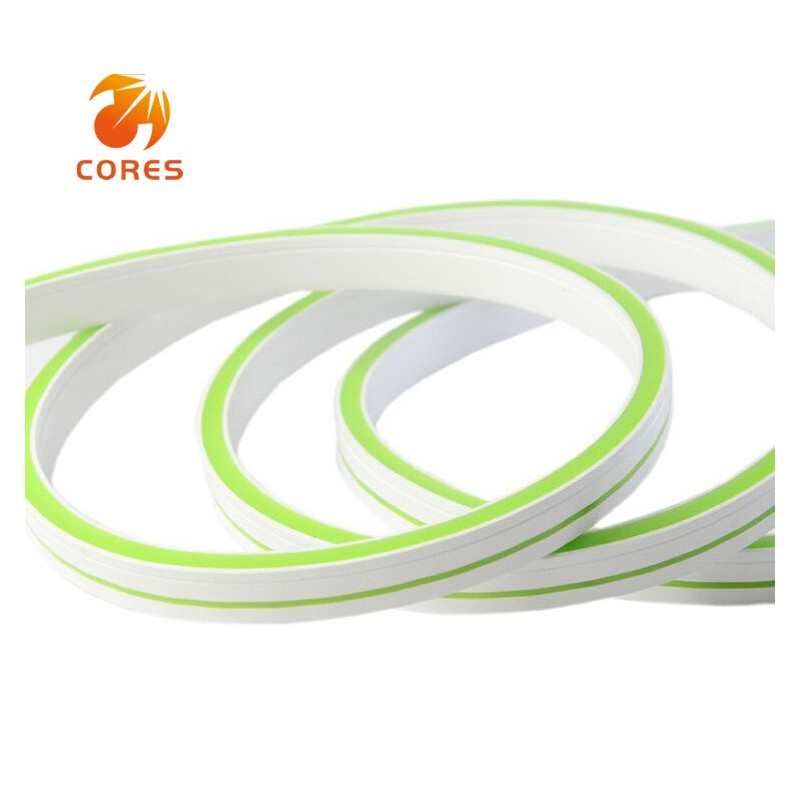

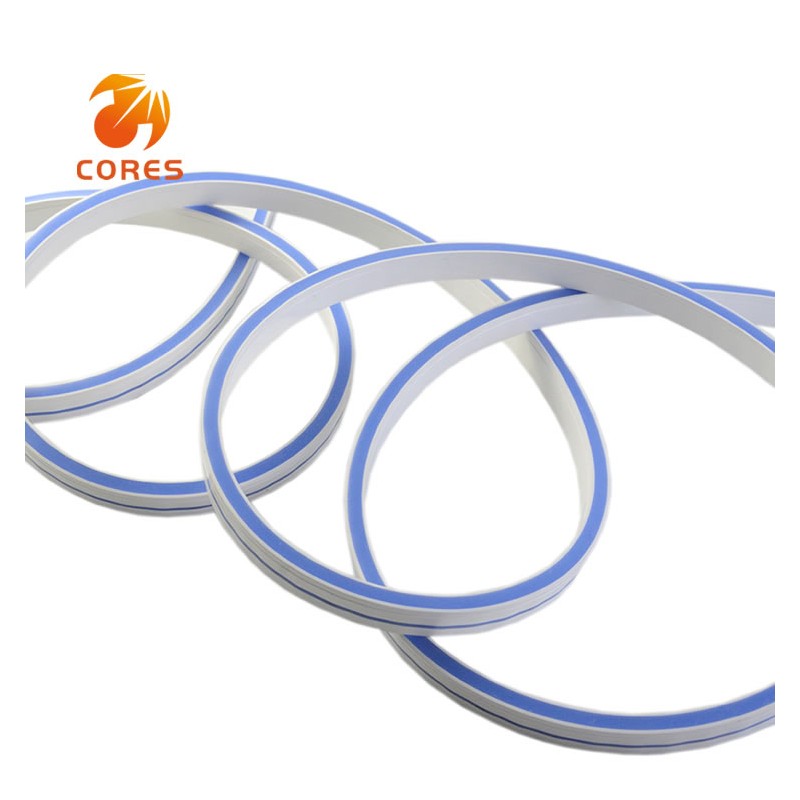

5*10mm Silicone Extrusion Neon Flex Strip SMD2835 120leds/m 5mm

Product Details

Model NO

CL2835-120D-5MM-EXTRUSION NEON- 5*10

Silicone Neon Size(mm)

5*10

Product Name

SMD2835 120LEDS/M LED strips

PCB Width

5MM

LED Qty/m

120leds/m 2835

PCB materials

2Oz Double-sided coated pure copper

Dimmension(mm)

5000*5*10

Cut unit

3LEDs 25mm/cut(12V),  6LEDs 50mm/cut(24V)

Voltage(V)

12V/24V DC

Rated Power(W)

6W/M,30W/5M

Luminous(lm/m)

360lm/m(4000K,6000K)

300lm/m(3000K)

150lm/m(Red,Pink)

130lm/m(Yellow)

60lm(Blue)

280lm/m(Green)

LED Chip Brand

Sanan(Epistar optional)

LEDs material

packaged by 99.99% pure gold wire

LED BINs

3-Step/5-Step, same BIN for each order

LEDs Supplier

Honglitronic (Osram/Samsung optional)

CRI(RA>)

CRI80(CRI 90 optional)

Color

W/WW/CW/R/G/B/Y/Pink

Color Tempertature

2200K,2700K,3000K,3500K,4000K,6000K,7000K

IP Rate

IP67

View Angle

120

Package(m/rol)

5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)

Working Temperature(ºC)

-20-60

Dimmable

Yes

Certificate

UL,CE,Rohs,FCC.

Warranty

3 Years


Cores Neon Light Features:

1,Environment-friendly,easy to decomposed

2,High CRI and Brightness, CRI>80.

3,UV Resistant,Yellowing Resistant and Salt Resistant , Operating Temperature is -25 to 70 Degree.

4,IP67 silicone extrusion waterproof.

5,CE ROHS Certification ,Limted 3 Years Warranty.

6,Dot free colorful Silicone 24V mini waterproof ip flex led neon strip light
